FRONT SUSPENSION

GM RPO CODE 6JD & 7JD refers to springs only.

Based on GM Regular Production Option (RPO) code definitions, 6JD and 7JD are passive suspension components, specifically front springs ONLY.
Here are the details:
RPO Code 6JD: Front Spring (Left Hand).
RPO Code 7JD: Front Spring (Right Hand).
Type: These are standard or heavy-duty coil springs used on GM trucks and SUVs  (such as the 2007-2014 Suburban/Yukon XL 1500).
They are considered passive because they do not electronically adjust damping or ride height on their own. They are the base mechanical springs.

Note: While your vehicle might have an active suspension system (like MagneRide, often denoted by RPO Z95), the 6JD/7JD codes specifically refer to the physical spring components, not the dampening system itself.

The front electronic struts (2007-2014+ models) are commonly replaced using Arnott SK-3062 or ACDelco 580-435.

---------------------------------------------------------------------------------------------------------------------------------------------


The GM 19353951 is a front shock absorber/strut assembly, featuring Magnetic Ride Control, designed for various 2007–2014 full-size GM SUVs and trucks. It primarily fits the Cadillac Escalade (including ESV/EXT), Chevrolet Tahoe, Suburban 1500/2500, Avalanche, Silverado 1500, and GMC Yukon/Yukon XL.

Key Vehicle Applications (2007–2014):
Cadillac Escalade / ESV / EXT (2007–2014)
Chevrolet Tahoe (2007–2014)
Chevrolet Suburban 1500/2500 (2007–2014)
Chevrolet Avalanche (2007–2013)
Chevrolet Silverado 1500 (2007–2013)
GMC Yukon / Yukon XL (2007–2014)
GMC Sierra 1500 (2007–2013)

Important Details:
Function: Front Shock Absorber/Strut Assembly with Magnetic Ride Control.
Common Interchange Numbers: 580-435, 580-432, 19300066, 19300038, 19353945.
Note: Fits 4WD/AWD models equipped with electronic suspension.

---------------------------------------------------------------------------------------------------------------------------------------------

REAR SUSPENSION

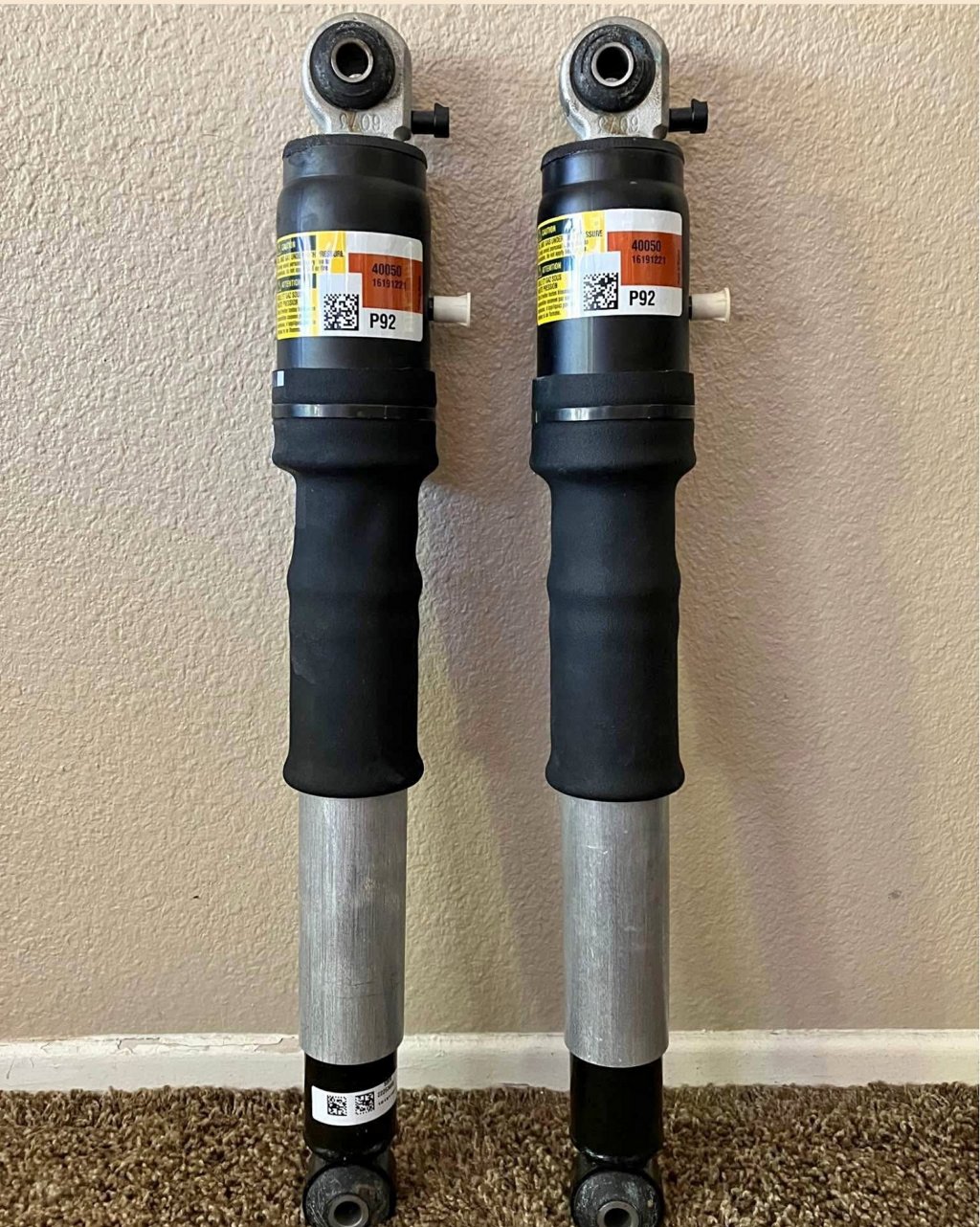

What's the difference between GM 19368462 (580-1094) and GM 19368461 (580-1093) ?

The main difference between these two GM Genuine / AC Delco rear air lift shock absorber parts is the specific vehicle trim, wheelbase, and packages they are calibrated to fit.

While both share identical external physical dimensions (an extended length of 22.75 inches) and are designed for 2007–2014 GM trucks equipped with the Z55 electronic Autoride suspension, they target different models within that family.

Key Differences to Note:
Valving and Load Rating: Because the GM 19368462 (580-1094) is engineered for the longer and heavier variants like the Chevrolet Suburban and GMC YukonXL,  its internal valving and air spring rate are calibrated to handle the higher base curb weight and cargo distribution.
Using the wrong one will throw off the Autoride computer module calibration or lead to a sagging rear end under load.

Package Exclusions: The 19368462 (580-1094) specifically excludes models equipped with the "Luxury Edition" package, making it highly specific to base Z55 setups on long-frame vehicles.  If you are replacing your shocks, It is highly recommended to verify your vehicle's exact setup.  If you can provide your VIN, exact model (e.g., Tahoe vs. Suburban), or the RPO codes located on the sticker inside your glovebox, I can verify exactly which part number belongs on your vehicle

---------------------------------------------------------------------------------------------------------------------------------------------



What's the difference between Z55 and Z95 suspension

The primary difference between Z55 and Z95 suspension systems on GM vehicles is the technology used to adjust dampening: Z55 (Autoride) uses electronic shocks to adjust stiffness based on road conditions, while Z95 (MagneRide) uses advanced, real-time magnetic dampers. Both are premium, active systems, but Z95 offers more precise control.

Z55 Suspension (Autoride):
Technology: Electronic shocks and struts that adapt to road conditions to adjust firmness automatically.
Features: Often includes a load-leveling feature for better stability while towing or carrying heavy loads.
Application: Commonly found on Tahoe, Suburban, Yukon, and Escalade models as an electronic comfort/handling enhancement.

Z95 Suspension (MagneRide):
Technology: Magnet or heological damper system, which uses magnetic fluid to change damping rates in real-time.
Features: Often considered a superior, more advanced, and responsive ride compared to traditional electronic shocks.
Application: Found on Cadillac GM models , providing enhanced luxury and performance handling.

Key Differences:
Response Speed: Z95 (MagneRide) generally reacts faster to changing road conditions than Z55.

Parts Interchangeability: Components (shocks/struts) are not interchangeable, and mixing them can cause suspension error messages.

Repair Cost: While both are expensive to maintain, magnetic systems (Z95) can have higher repair costs, although they are generally considered more reliable over the long term.

It is important to check the Service Parts Identification sticker in the glove box to confirm whether a vehicle has Z55, Z95, or another system, as suggested by GM.

---------------------------------------------------------------------------------------------------------------------------------------------

Difference between GM 580-1093 and GM 580-1094


GM part number 580-1093 is for the rear air suspension module on a short-body vehicle (Tahoe Yukon), while 580-1094 is for the same module on a long-body vehicle (Suburban YukonXL). These different part numbers account for the differing lengths and suspension characteristics of short and long-body GM SUVs, ensuring proper fit and  function.



Key Difference is Vehicle Body Style:
The primary difference is the intended vehicle body style.
580-1093: Designed for short-body vehicles such as the Tahoe, Yukon.
580-1094: Designed for long-body vehicles such as the Suburban, YukonXL.
Suspension Components:
The air suspension modules are engineered with slight variations in length or mounting to accommodate the different wheelbases and chassis configurations of short-body versus long-body GM trucks and SUVs.
580-1094 is correct for long chassis

---------------------------------------------------------------------------------------------------------------------------------------------

Rear Spring Isolator

Yes, the GM 15765071 Rear Spring Isolator is designed to be used on both the top and bottom of the rear coil springs for many GM vehicles.
Purpose: These rubber insulators eliminate noise, vibrations, and harshness (NVH) by preventing metal-to-metal contact between the coil spring and the frame/control arm.
Usage: For a complete suspension service, it is recommended to install two insulators per coil (one for the top, one for the bottom).
Application: These fit a wide range of GM vehicles (2000–2020), including Chevy Suburban, GMC Yukon, Escalade, typically on the rear suspension.
While they are often listed as "rear upper" in some parts catalogs, they are commonly used in pairs (top/bottom) to resolve rear suspension noise.

---------------------------------------------------------------------------------------------------------------------------------------------

COMPRESSOR TIMEOUT

The air suspension pump on a 2012 GMC Yukon XL features a built-in safety timeout of (approx 2 ) to ( 3 ) minutes (or about (150 text seconds ) of continuous running. If a leak prevents the system from reaching its target pressure within this window, the Electronic Suspension Control (ESC) module cuts power to the pump to prevent it from burning out, typically setting a leveling timeout code (like OBD-II code C1737).

Normal Operation vs. Leak Behavior
Normal Startup:
Runs for just ( 5 ) to ( 10 ) seconds to perform a self-test and verify baseline pressure ( >10 text psi ).

System with a Leak:
The pump will run for its maximum limit of roughly ( 2 ) to ( 3 ) minutes, shut off to rest, and then attempt to run again every time you cycle the key or while you drive, trying unsuccessfully to level the sagging rear.

Quick Diagnostics Steps
The ( 5 )-Minute Soapy Water Test: Mix dish soap and water in a spray bottle. Spray down the rubber bladders of your rear shocks. If you have a leak, you will see active bubbling along the folds of the rubber or at the air line fitting.Overnight Sag Check: Park your Yukon XL on level ground. Measure the distance from the ground to the top of the rear wheel well. If the rear end drops flat overnight, you have a confirmed leak in the air shocks or lines.

Inspect the Air Dryer:
Check GM Parts Direct or your local auto parts store for replacement air lines or O-rings if the shocks themselves hold pressure but the lines do not.If you tell me how many miles are on your vehicle and if the 'Service Suspension System' light is currently on, I can help you decide whether to replace just the air shocks or convert the entire rear suspension to standard passive shocks.
